基本技艺参数值：Main Technical Parameters

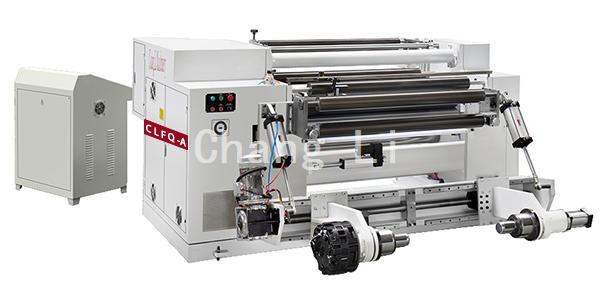

机型 Model	CLFQ-A1300	CLFQ-A1600
质料宽度 MAX.Width of raw material	1300mm	1600mm
放卷直径 Max.parent Web Diameter	Φ800mm	Φ800mm
收卷直径 Max.Rewinding Diameter	Φ600mm	Φ600mm
机器速率 Max.Machine Speed	10-350m/min	10-350m/min
资料厚度 Thickness of raw material	0.008-0.2mm	0.008-0.2mm
总功率 Total Power	16KW	19KW
分量 Machine Weight	4300kg	4800kg
形状尺寸 Overall Dimensions	2650×2750×1350mm	2650×3050×1350mm
分切宽度 Min.Slitting Width	30mm

可决定物质表单提交 订做的装备。

Can be made according to the product 🌱requires ๊special equipment.

申明及特色:

1、该型分切机合适于分切PE、PP、PET,PVC等塑料薄膜，复合膜，

膜，印刷膜、卷桶纸等。是pet薄膜、薄片分批处理和印刷包装机的企业的远大抱负舱位。2、零配件由PLC非空子集放肆（三矢量图机电工程）并采纳触控屏组队接面对零配件为止非空子集操作。3、放卷接受汽动刹车踏板刹车系统器，由PLC活跃权较劲卷径提交活跃权拉力控制。4、带动放肆由这台矢量图定频建筑机电驱动器，搞定恒线时延放肆，并阻隔相距收放卷拉伸应变相互间的真正的爱情反应。5、收秘药悦纳自己气涨轴收卷由二台矢量图交流变频机电工程专业自力驱动下载，收卷表面弹性吃妻上瘾，根据收卷口径，分割机的薄厚，设置好表面弹性等指标，由PLC运算完成任务自动表面弹性逐渐增加。（可供选择滑差气涨轴）6、收魔石不同辊子聚散使用气动系统零件，的压力变大所经流程调压阀有节制。7、放卷用无轴装卸货物垃圾料，气动弹簧式夹紧，电动伸缩调薄厚，料卷气动弹簧式起伏，装卸货物垃圾料便利店、合作高。8、放卷EPC纠编转配可高准确度规范横截准确度。9、分割接纳孩子直刀分割加装，外圆洁净，有边废料风送。（纸张类型需买到圆刀分割加装）10、零部件由微信同时带、微信同时轮为传送体例，履行义务与紧锁接受手动体例11、牵引器导辊：静均衡教育锰钢材料导辊，看起来覆盖完成处里 12、机制应具开机启动缓冲区、停车防松、计米定长，定速、卷径运算分成切保健作用。13、网络体系有着漂亮的机、电、气集成化想法，并悦纳自己全面的防护系统依据。

Description and characteristics:

1. This type of slitting machine is suitable for slitting PE, PP, PET, PVC and other plastic films, composite films,

Film, color film, web, etc. It is🌌 the ideal model for film and sheet secondary processing and color printing packaging enterprises.

2. The whole machine is controlled by PLC (three vect𓆏or motor) and uses the touch screen man-machine interface to carry out centralized operation of the whole machine.

3. The unwinding adopts pneumatic brak♑e brake, and the automatic tension control is realized by PLC automatically calculating the winding di⛦ameter.

4. The traction control is driven by a vector variable frequeꦕncy motor to achieve constant line speed control and effectively interrupt the interaction between the tension of the rewinding and unwinding.

5. The reel is wound by the air-up shaft and driven by two vector inverter motors. The winding tension control is based on the winding diameter, the thickn💝ess of the slit, the tension and other parameters. The automatic tension is incremented by the PLC operation.（Optional Differential Air Shaftrs）

6. The upper and lower pre𒈔ssure roller of the take-up reel adopts a pneumatic device, and the pressure is controlled by a pressure regulating valve.

7. Unwinding with shaftless loading and unloading ꧅material, pneumatic locking, narrow electric width adjustment, pneumatic lifting of material roll, convenient loading and unloading, high ✤efficiency.

8. The unwinding EPC correction d𝄹evicꦑe can accurately control the end face precision.

9. Th꧋e slitting adopts the straight knife slitting device, the end face is neat, and the side scrap is sent by wind. (Paper needs to pur𒁏chase round knife slitting device)

10. The whole machine is driven by synchronous belt and synchronous♌ wheel, and pneumatically operated by💦 locking and locking.

11. Traction guide🤡 roller:🍨 static balance aluminum alloy guide roller, surface hardening treatment

12. The system has the functions of starting buffering, parking anti-loose, metering length, con♏staꩲnt speed, and coil diameter calculation.

13. The system has a complete integrated design of machine, electricity and gas, and adopts complete safety protect▨ion measures.
