前提手艺人运作：Main Technical Parameters

形号 Model	CLFQ-QW1300	CLFQ-QW1600
zui大资料高度MAX. Width of raw material	1300mm	1600mm
zui大放卷直径约Max.parent Web Diameter	Φ1500mm	Φ1500mm
zui大收卷外径Max.Rewinding Diameter	Φ1000mm	Φ1000mm
zui高机速度 Max.Machine Speed	10-400m/min	10-400m/min
总公率 Total Power	25KW	29KW
信噪比 Machine Weight	4300kg	4800kg
造型规格 Overall Dimensions	3200×2900×2000mm	3200×3200×2000mm
zui小分割总宽 Min.Slitting Width	20mm	20mm

可按照产物请求 特别订制装备。

Can be made according to the product requires special equipment.

产物申明

配伍规模性机器合吃于各太中大型自粘卷材防水的模切，如30g/m2-400g/m2头层牛皮纸厂家生产的牛皮纸、白硬纸板、淋膜纸、镀铝、PVC塑胶、锡纸等自粘卷材防水的模切、复卷等。机可及独特1. 该选果机悦纳自己异步系列伺服机电工程专业工程专业(矢量素材机电工程专业工程专业)放肆、被动锥度张度，之间卷取体例。主机箱悦纳自己定频可控硅调压，坚定不移缩短设一衡启用。2. 及时计米、警报器作用与功效。收卷采纳A、B气胀轴功能分区，卸装控制方便快捷。3. 放卷得到光电材料自动纠偏批改作业装修标准，使不发则姿料能普通分切机。4. 自主调刀系统（读取你目前的分割規格单次排好数控刀具），圆刀纵切废边自主废气排放装配工艺。 5. 油压机式分手后轻重料，无轴装卷。6.导轨式自觉下料机安装。

product manual

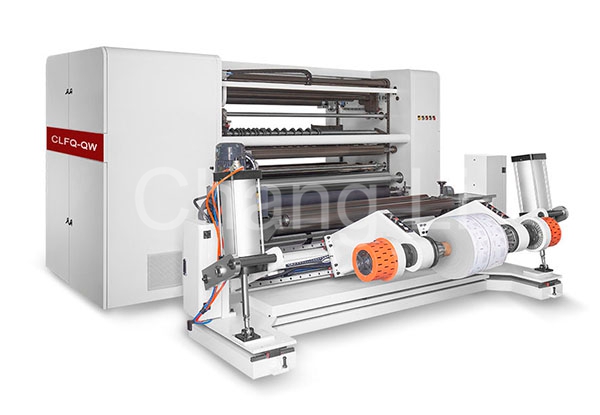

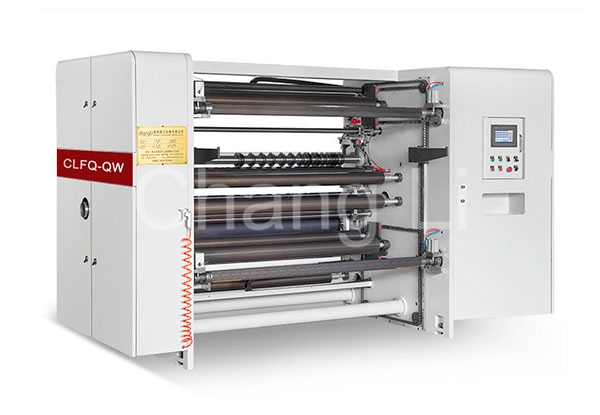

Scope of applicationThis machine is suitable for the slitting and rewinding of various super large coils, such as 30g/m2-400g/m2 kraft paper, white cardboard, coated paper, aluminum foil, PVC plastic, tin foil and other coils.performance and characteristics1. The machine adopts asynchronous servo motor (vector motor) control, automatic taper tension, and center winding mode. The host adopts frequency conversion speed regulation to maintain a balanced operation during acceleration.2. Automatic meter counting and alarm function. The rewinding adopts A and B inflatable shaft structure, which is easy to unload and operate.3. The unwinding adopts the photoelectric automatic correction system to make the irregular materials can be slit normally.4. Automatic tool adjustment system (input the slitting specifications you need to arrange the tools at one time), and the automatic discharge device for round knife longitudinal cutting waste.5. Hydraulic automatic loading and unloading, without shaft loading.6. Guide rail type automatic unloading device.
